Synthetic diamond dies
(Monocrystalline & Polycrystalline Diamond Dies) for drawing of wires from 0.050mm to 15mm
Our polycrystalline diamond dies production system allows us to supply dies with
superior polished surface.
A better polish translates into an easier drawing operation & a higher quality finish
of final product.
Technical advice for choice of PCD blanks with a wide choice of possibilities adapted
to each application (Copper,Alluminium,Steel,Alloys..... etc) and taking into account
your Specifications & performance requirements.
Consistency of the geometry and high level of surface polish for you to achieve
the best results in terms of surface finish, tight tolerances, dies performance
and to protect your lubricants. Also, get significantly longer die life.
| MAXIMUM HOLE SIZES AS RECOMENDED BY THE INSERT MANUFACTURERS | ||||
| Nib | INCHES | MILLIMETERS | ||
| Soft Materials | Hard Materials | Soft Materials | Hard Materials | |
| D-6 | .030" | .018" | 0.762 | 0.457 |
| D-12 | .032" | .024" | 0.813 | 0.609 |
| D-15 | .052" | .040" | 1.321 | 1.016 |
| D-18 | .083" | .055" | 2.098 | 1.397 |
| D-21 | .130" | .072" | 3.302 | 1.829 |
| D-24 | .181" | .106" | 4.597 | 2.692 |
| D-27 | .260" | .220" | 6.604 | 5.588 |
| D-30 | .300" | .255" | 7.620 | 6.477 |

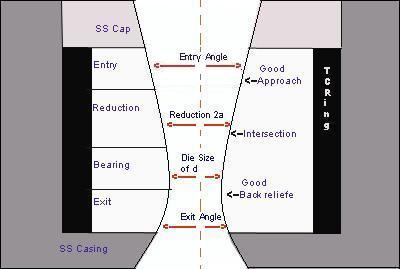

| STANDARD SPECIFICATION: | |||
| Sr.No. | Details | SoftWire | HardWire |
| 1 | ReductionAngle2@ | 16-20' | 10-14' |
| 2 | BearingLength | 25-30%d | 35-40%d |
| 3 | EntryAngle | 60'+-10' | 60'+-10' |
| 4 | ExitAngle | 60'+-10 | 60'+-10 |
